Low Vibration Angular Contact Ball Bearings Single Row C3 C4 Clearance 3.5cm

Product Categories

Anhui Thysenem Machinery Co., Ltd.

Contact Now

Low Vibration Angular Contact Ball Bearings Single Row C3 C4 Clearance 3.5cm

Brand Name : DCM

Model Number : OPEN，-Z，-RS，-RZ，-RSR

Certification : ISO9001

Place of Origin : China

MOQ : Negotiated

Price : Negotiated

Payment Terms : Negotiated

Supply Ability : Negotiated

Delivery Time : Negotiated

Packaging Details : Industrial Packing or Single Box, Cartoon,Pallet

Material : GCr15

Precision Rating : P0 P6 P5 ABEC-1 ABEC-3 ABEC-5

Clearance : C0 C2 C3 C4 C5 C9

Vibration : Z1 Z2 Z3 Z4 V1 V2 V3 V4

Number of row : Single Row

Lubrication : Grease or oil

Cage : Steel Cage,Nylon,Brass

Feature : Long Life,High Speed,low noise

Contact Now

ID 35mm Angular Contact Ball Bearings P5 P4 P2 V1 V2 V3 V4 High Precision Low Noise Low Vibration High Speed Long Life

Features

Angular contact ball bearings are the structural variants of deep groove ball bearings, and mainly bear combined radial and axial loads. They are divided into C, AC, and B structures according to the magnitude of the axial load. It is characterized by small friction coefficient, high limit speed, and the high manufacturing accuracy, and is widely used in various precision machineries.

To bear predominate radial load and subsidiary axial load from both directions, lower cost and price, low running resistance, high limiting speed, possible to reach higher rotating precision and pretty low vibration level, in addition, possible to make into sealing structure.

Product Specification

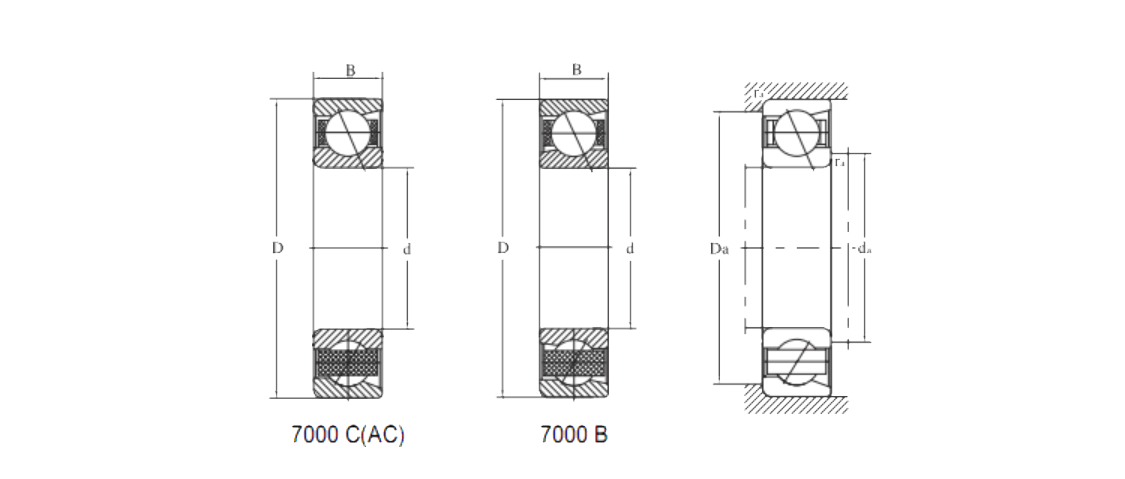

Basic dimension					Basic load rating		Limited rotation speed		Weight	Installation dimension			Bearing code
d	D	B	r	r1	Cr	Cor	Grease	Oil	Wt	da min	Da max	ra max	New code
mm	mm	mm	min	min	kN	kN	r/min	r/min	kg	mm	mm	mm
35	62	14	1	0.3	19.4	13.9	15000	19000	0.15	41	56	1	7007C
	62	14	1	0.3	18.5	13.2	12400	18000	0.15	41	56	1	7007AC
	62	14	1	0.3	16.1	11.6	10000	12000	0.173	41	56	1	7007B
	72	17	1.1	0.3	30.4	20	13000	18000	0.284	42	65	1	7207C
	72	17	1.1	0.3	29.1	19.2	8800	11000	0.284	42	65	1	7207AC
	72	17	1.1	0.6	25.7	17	7900	9900	0.318	42	65	1	7207B
	80	21	1.5	1	40.4	26	12400	17000	0.455	42	73	1.5	7307C
	80	21	1.5	1	38.8	25	8200	10000	0.454	42	73	1.5	7307AC
	80	21	1.5	1	34.6	22.3	7400	9000	0.515	42	73	1.5	7307B

Application

Electric motors

machine tools

automobiles

precise devices

home ppliances

chemical machineries

general machineries

agricultural machineries
